TR-CS All In One Solar LED Street Light with 6V20W Solar Panel 20AH Battery Capacity and 110 lm/w Lumen
| Place of Origin | Guangdong China |
|---|---|
| Brand Name | KCD |
| Certification | ce, RoHS, EMC |
| Model Number | TR-CS |
| Minimum Order Quantity | 2 pieces |
| Price | US $7/ Piece |
| Packaging Details | White box/Color box/Neutral packing |
| Delivery Time | 45 work days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal |
| Supply Ability | 100000 Piece/Pieces per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Solar Panel | 6V20W Solar Panel(mono Crystalline Silicon) | Battery Capacity | 20AH |
|---|---|---|---|
| Lumen | 110 Lm/w | Led Chips Brand | SMD2835 |
| Led Life Time | 50000hours | Viewing Angle | Light Angle Adjustable |
| Work Time | 10-12 Hours Per Day, 5-7 Days Back Up | Working Temperature | -20℃~+50℃ |
| Mounting Height | 6-8m | Color | Black |
| Highlight | 6V20W Solar Panel All In One Solar LED Street Light,20AH Battery Capacity Solar LED Street Light,110 lm/w Lumen Integrated Solar Street Light |
||
You can tick the products you need and communicate with us in the message board.
| Model | PH | Battery | Solar Panel | MH | Size | |
|---|---|---|---|---|---|---|
| TR-CS 2 | 1100lm | 5AH | 6V/6W | 650lm | 236.7*399.4*68.8 | |
| TR-CS 3 | 2200lm | 10AH | 6V/10W | 1350lm | 497.5*236.7*68.8 | |
| TR-CS 4 | 3300lm | 15AH | 6V/15W | 2000lm | 597.9*236.7*69.9 | |
| TR-CS 5 | 4400lm | 20AH | 6V/20W | 2600lm | 236.7*695.4*70.2 |
Product Description

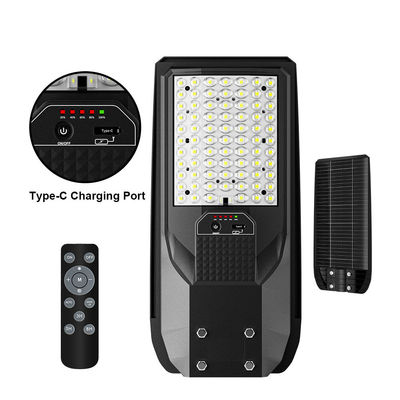

TR-CS High Lumen Brightness All In One Solar LED Street Light with Type C charger and IP65 Water Resistance
Key Features
Multi-Angle Lighting System
- 120° Vertical Adjustment - Tilt lamp head for precise beam control
- 350° Horizontal Rotation - Full-directional positioning flexibility
- Tool-Free Locking - Secure angles instantly with patented quick-lock

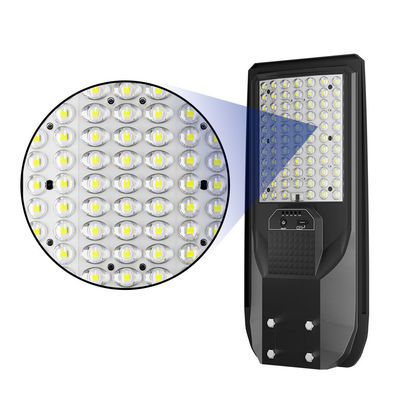

High-Lumen Optical System
- Optical PC Lens - 92% light transmission, no dark spots
- 10,000LM Brightness (Equals 300W traditional lights)
- 3 CCT Options (3000K/4000K/6500K)
Military-Grade Protection
- IP65 Waterproof - Resists typhoons/sandstorms
- ABS+PC Housing - UV-resistant, works at -40°C~80°C
- Anti-Theft Screws - Vandal-proof construction
Physical Switch + Remote Control
- IP65-rated physical switch for manual on/off and mode switching
- Optional remote control for adjusting brightness/mode from a distance
Specifications
| Specification | Value |
|---|---|
| Power | 150W LED |
| Luminosity | 1500LM |
| Battery | 1000mAh LiFePO4 |
| Solar Panel | 6V 15W Monocrystalline |
| Sensor Range | 5-8m |
| IP Rating | IP65 |
| Operating Temperature | -20°C ~ 60°C |

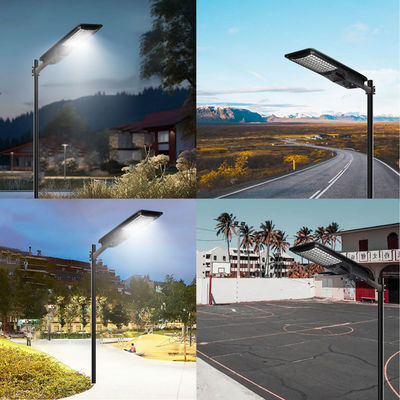

Application Scenarios
- Urban Streets
- Construction Sites
- Park Lighting
- Highway Service Roads
Q & A
Does PC lens turn yellow?
UV stabilizer maintains >90% transmittance for 5 years
Does cold weather affect performance?
LiFePO4 battery works at -20°C.
Does installation require wiring?
No wiring needed, includes mounting kit.
Professional installation needed?
Includes manual, DIY installation in 30mins
