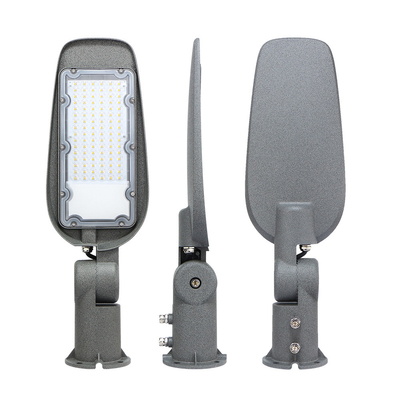

100w 150w Aluminum Outdoor LED Street Lights Modular SMD Modern Smart With Pole

Place of Origin Guangdong, China
Brand Name KCD
Certification ce, EMC, RoHS
Model Number RL-50W
Minimum Order Quantity 2 Pieces
Price $9.45 - 15.76/ Piece
Packaging Details White box/Color box/Neutral packing
Delivery Time 45
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100000 Piece/Pieces per Month
Product Details
Product Name China Supplier 60W Aluminum Die Casting Led Street Light Led Light Source LUMILEDS 3030 5050 Led
Material Aluminum Housing Keyword 80w Led Solar Street Light Manufacturers
Item Type Street Lights Working Lifetime(hour) 50000
Input Voltage(v) AC85-265V Application ROAD,Roadway,outdoor,road & Street,garden
Color Temperature(cct) Pure White,Cool White Working Temperature(℃) -20 - 50
High Light

Aluminum Outdoor LED Street Lights

,

Outdoor LED Street Lights 150w

,

Modular SMD Waterproof LED Street Light

Leave a Message
Product Description

50w 100w 150w Aluminum Outdoor LED Street Lights Modular SMD Modern Smart With Pole



Description of 50w 100w 150w Aluminum Outdoor LED Street Light

1. High pressure die-cast aluminum alloy housing from 30W to 200W.
2. Substantial friction resistant powder spraying process surface treatment.
3. Adopt multi-chips package 3030/5050 LEDs. Stable performance,flip chip technology, single unit’s damage won't affect others' normal work.
4. Smooth back,self-cleaning deisgn tempered glass cover.
5. Optical lens design. Type II-M,III-M,IV-S optional.Uniform lighting distribution apply to different lighting projects.
6. Excellent operating temperature -20~50°C
7. -10~10° adjustable bracket applicable different mounting arm.
8. With excellent housing design reach IP65/IK07 rating.
9. Automatic cut-off design.10KV/20KV SPD.
10. Dimming and smart lighting system available upon request.
11. Long service life over 50,000 hours, 3 years warranty.

Application: Aluminum Outdoor LED Street Light is designed for various outdoor applications. Such as highway, roads, bridges, pedestrian streets and other occasions where lighting is required.

Specification of LED Street Light

Name Nominal Value
Type RL-30W RL-50W RL-100W RL-150W RL-200W
Power 30W 50W 100W 150W 200W
Luminous Efficiency 90-160lm
CCT 3000K/4000K/5000K/6000K
CRI >80
Brand of Chips Lumileds SMD 3030
Beam Angle Type II-M,III-M,IV-S
IP Rate IP65
Voltage AC 85-265V
Inclination Angle -10~10°
Working Environment -20℃~50℃,20%~90% R.H
Storage Temperature -40℃~85℃10%~90% R.H
Driver Efficacy 0.92
PF >0.9
Lifetime >50,000 Hours
Size of light pole φ60mm/ 50mm /40mm
SPD 10KV/20KV
Size of Lamp 438.5x128.6x88mm 486.5x151.2x88mm 564x189.1x88mm 647.5x227.5x88mm 695x235x97mm
For more information, please click CONTACT US >

100w 150w Aluminum Outdoor LED Street Lights Modular SMD Modern Smart With Pole 0



Lumileds LED Chips

High brightness and light transmission
Low light decay and lond service life



180° flexible rotation

180° flexible adjusting azimuth
Meeting Lighting Requirements

100w 150w Aluminum Outdoor LED Street Lights Modular SMD Modern Smart With Pole 1

Professional outdoor AKZO painting
Corrosion and rusting resistance



IP65 Waterproof SPD 10KV optional
Outdoor rain and lightning protection
Superior waterproof performance

100w 150w Aluminum Outdoor LED Street Lights Modular SMD Modern Smart With Pole 2

FAQ



Q1: Do you provide ODM or OEM service?
A: Yes,we can do ODM&OEM, put your logo on the light or package both are available.



Q2: How many years warranty for the product?
A: We offer 2-5 years warranty to our products.



Q3: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL,UPS,FedEx or TNT.It usally takes 3-5 days to arrive.Airline and shipping are also optional.



Q4: How is the after sales service?
A: We have a professional team which is in charge of after-sales service,also a service hot-line dealing with your complains and feedback.



Q5: What are your main products?
A: Outdoor lighting products, such as LED flood lights, LED street lights, LED high bay lights, solar street lights, solar flood lights, LED work lights.
